Hi Justina,

We had 2 card reader problem (Inepro) at Infineon Batam,

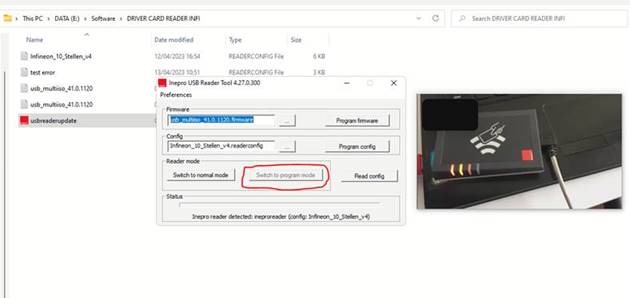

The problem is the card reader cannot change mode to Program mode so we cant
inject configuration dan firmware update

And the all LED Lamp always blinking. We already tried to many way like use
newest usb updating tools, etc and at the end

We conclude there is problem with the Card Reader hardware

Can You give us direction, What Should we do?

There is different if normal card reader and the error reader

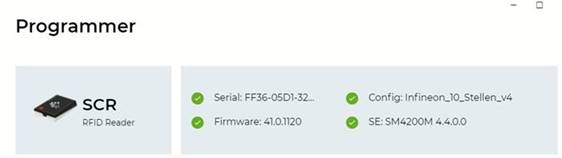

Normal Reader

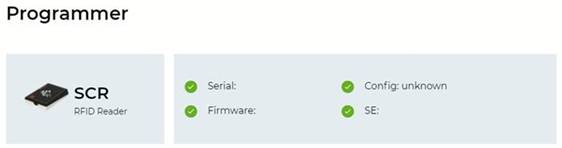

Error Reader

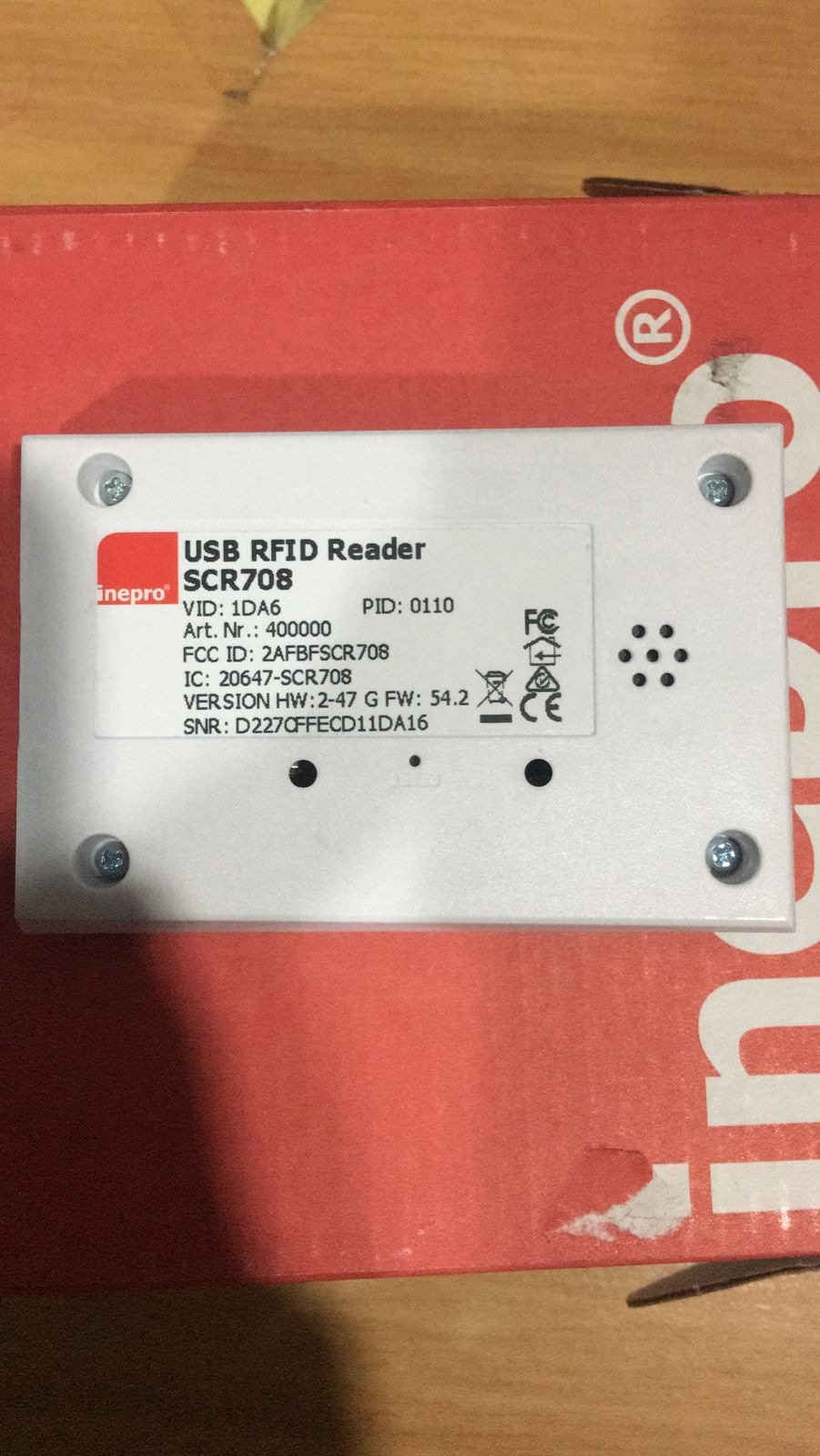

Here is the SN of reader

Appreciate if you can help us to check and advise the solution please. or
maybe can get someone in Global team to this email..

Thank You

Regards,

Soenwono Suprapto | GMA & Direct Dept Head

T: +62 21-27937489

F: +62 21-27937486

M: +62-87771697791

 <http://www.moderndatasolusi.com/> www.moderndatasolusi.com

PT MODERN DATA SOLUSI

 <https://goo.gl/maps/ta17fqnTWbL2> JL. Sultan Iskandar Muda No. 29,
Kebayoran Lama Utara, Kebayoran Lama - Jakarta Selatan 12240

From: Justina Sim <Justina.Sim at ricoh.com.my>
Sent: 20 March 2023 11:23
To: soenwono <soenwono at moderndatasolusi.com>
Cc: Erik Reinaldo <Erik at moderndatasolusi.com>; 'it.team'
<it.team at moderndatasolusi.com>; yan at moderndatasolusi.com; Henry Sutanto
<henry.sutanto at moderndatasolusi.com>
Subject: RE: Card reader configuration in Infineon

Good day Sun Sun

Can you kindly let me know information does PTM engineer require so that I
can direct it to the proper channel.

I have also attached the Card Reader Config file incase you do not have it.

Thank you.

Kind Regards

Justina Sim
Global Account Coordinator

Ricoh Global Services Greater Asia Pacific
Business Operation Division

Mobile Phone : +6016 640 4757

Justina.Sim at ricoh.com.my <mailto:Justina.Sim at ricoh.com.my>
 <http://www.ricoh-ap.com/> www.ricoh-ap.com

Advance Public Holiday Notice:

Advance Leave Notice:

RICOH (Malaysia) Sdn Bhd   (10078-W)
UG-D6, Level Upper Ground,
Utropolis Suites 2, Jalan Kontraktor U1/14,
40150 Shah Alam, Selangor

Website:  <http://www.ricoh.com.my/> www.ricoh.com.my

 <https://www.ricoh.com.my/>

This message together with any attachments is confidential and intended
solely for the person or entity to whom it is addressed. It contains
information that is confidential and that may be legally privileged. If you
are not the intended recipient (or if you have received this message in
error), please notify the sender immediately by replying to this message and
delete this e-mail (and any other record of it) from your system. Please do
not copy or use it for any purpose. Recipient is advised to check this email
and any attachments for the presence of trojans or viruses. The company
accepts no liability for any damage caused by any virus transmitted by this
email.

----------------------------------------------------------------------------
------------------------------------------------------------

From: Soenwono <soenwono at moderndatasolusi.com
<mailto:soenwono at moderndatasolusi.com> >
Sent: Monday, March 20, 2023 12:11 PM
To: Justina Sim <Justina.Sim at ricoh.com.my <mailto:Justina.Sim at ricoh.com.my>
>
Cc: Erik Reinaldo <Erik at moderndatasolusi.com
<mailto:Erik at moderndatasolusi.com> >; 'it.team'
<it.team at moderndatasolusi.com <mailto:it.team at moderndatasolusi.com> >;
yan at moderndatasolusi.com <mailto:yan at moderndatasolusi.com> ; Henry Sutanto
<henry.sutanto at moderndatasolusi.com
<mailto:henry.sutanto at moderndatasolusi.com> >
Subject: Card reader configuration in Infineon

Hi Justina, As per our discussion in WA, need your help to connect us to
GSSC team regarding card reader installation at Infineon Batam. My engineer
already follow the configuration in the buildbook (as attached) but they
need more information

ZjQcmQRYFpfptBannerStart

CAUTION: This Email is from an EXTERNAL source. Ensure you trust this sender
before clicking on any links or attachments.

ZjQcmQRYFpfptBannerEnd

Hi Justina,

As per our discussion in WA, need your help to connect us to GSSC team
regarding card reader installation at Infineon Batam.

My engineer already follow the configuration in the buildbook (as attached)
but they need more information on the:

1. inepro usb reader tool 4.27.0.300

2. firmware usb_multiso_41.0.1120

3. infeneon_10_stellen_v4.readconfig

Thank you.

Regards,

Soenwono Suprapto | GMA & Direct Dept Head

T: +62 21-27937489

F: +62 21-27937486

M: +62-87771697791

 <http://www.moderndatasolusi.com/> www.moderndatasolusi.com

PT MODERN DATA SOLUSI

 <https://goo.gl/maps/ta17fqnTWbL2> JL. Sultan Iskandar Muda No. 29,
Kebayoran Lama Utara, Kebayoran Lama - Jakarta Selatan 12240
